Part Number	Family	VDS (V)	IF(A)	Circuit	Datasheet

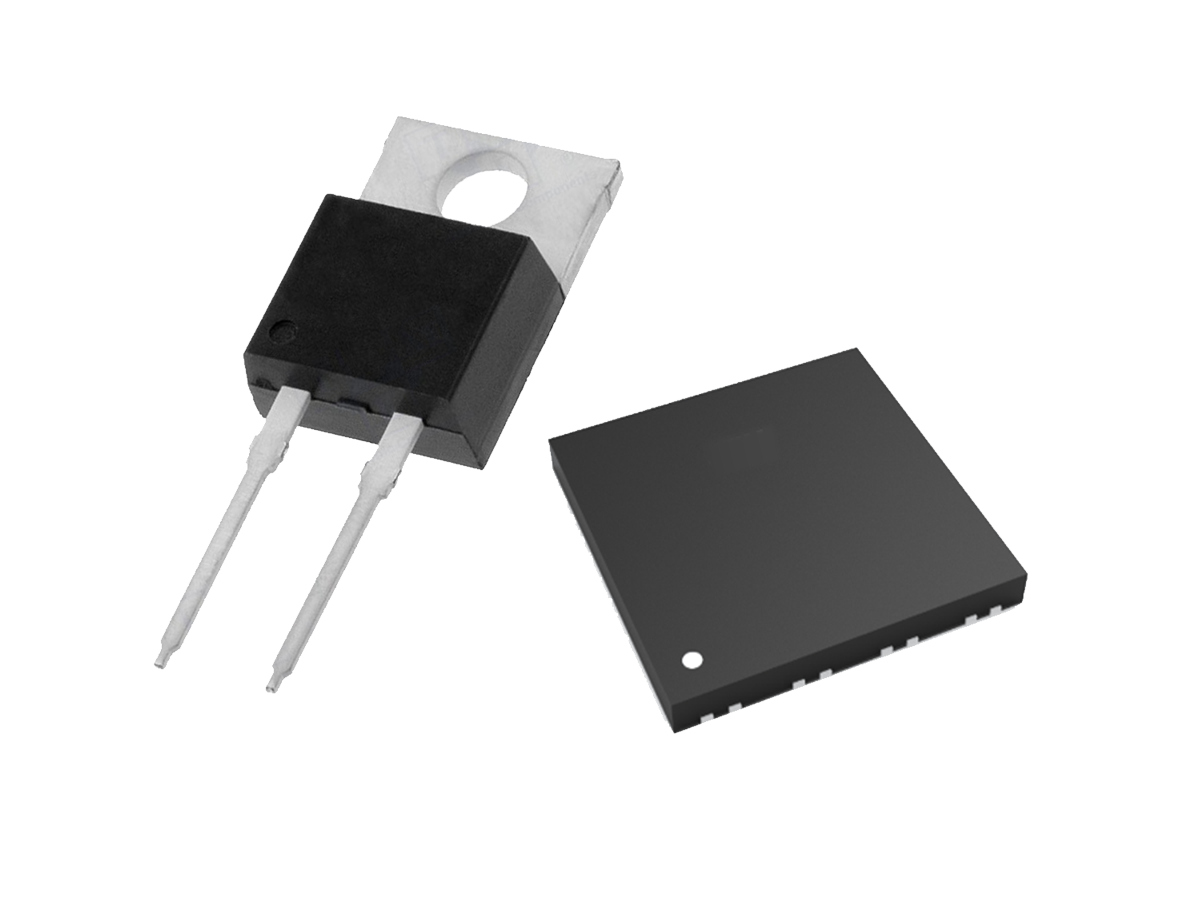

Part Number	Family	VR(V)	IF(A)	Package	Datasheet
NW6504TX1	SiC SBD	650	4	TO252-2
NW6504TZ1	SiC SBD	650	4	TO220-2	Contact us
NW6504TW1	SiC SBD	650	4	TO220F-2
NW6506TX1	SiC SBD	650	6	TO252-2
NW6506TZ1	SiC SBD	650	6	TO220-2
NW6506TW1	SiC SBD	650	6	TO220F-2
NW6508TD1	SiC SBD	650	8	DFN8*8
NW6508TX1	SiC SBD	650	8	TO252-2
NW6508TZ1	SiC SBD	650	8	TO220-2
NW6508TW1	SiC SBD	650	8	TO220F-2
NW6510TX1	SiC SBD	650	10	TO252-2
NW6510TZ1	SiC SBD	650	10	TO220-2
NW6510TY1	SiC SBD	650	10	TO263-2
NW6510TW1	SiC SBD	650	10	TO220F-2
NW6510TD1	SiC SBD	650	10	DFN8*8
NWK202TX1	SiC SBD	1200	2	TO252-2	Contact us
NWK202TZ1	SiC SBD	1200	2	TO220-2	Contact us
NWK205TZ1	SiC SBD	1200	5	TO220-2	Contact us
NWK205TJ1-2	SiC SBD	1200	5	TO247-2	Contact us
NWK206TX1	SiC SBD	1200	6	TO252-2	Contact us
NWK208TZ1	SiC SBD	1200	8	TO220-2	Contact us
NWK210TZ1	SiC SBD	1200	10	TO220-2	Contact us
NWK210TJ1	SiC SBD	1200	10	TO247-3	Contact us
NWK210TJ1-2	SiC SBD	1200	10	TO247-2	Contact us
NWK210TY1	SiC SBD	1200	10	TO263-2	Contact us
NWK216TJ1	SiC SBD	1200	16	TO247-3	Contact us
NWK220TZ1	SiC SBD	1200	20	TO220-2
NWK220TJ1	SiC SBD	1200	20	TO247-3	Contact us
NWK220TJ1-2	SiC SBD	1200	20	TO247-2	Contact us
NWK220TY1	SiC SBD	1200	20	TO263-2	Contact us
NWK240TJ1-2	SiC SBD	1200	40	TO247-2
NWK710TJ1-2	SiC SBD	1700	10	TO247-2
NWK730TJ1-2	SiC SBD	1700	30	TO247-2

Part Number	Family	VDS (V)	RDS,ON (typ.) (mΩ)	Package	Datasheet
NW6504CJ1-4	SiC MOSFETs	650	40	TO247-4
NW6506CD1	SiC MOSFETs	650	60	DFN8*8
NW6506CL1	SiC MOSFETs	650	60	TOLL
NW6506CJ1	SiC MOSFETs	650	60	TO247-3
NW6506CW1-3	SiC MOSFETs	650	60	TO220F-3
NW6516CW1-3	SiC MOSFETs	650	160	TO220F-3
NW6520CX1	SiC MOSFETs	650	200	TO252
NW6520CW1-3	SiC MOSFETs	650	200	TO220F-3
NW6526CX1	SiC MOSFETs	650	260	TO252
NW6532CX1	SiC MOSFETs	650	320	TO252
NW6550CX1	SiC MOSFETs	650	500	TO252
NWK201CJ1-4	SiC MOSFETs	1200	12	TO247-4	Contact us
NWK202CJ1-4	SiC MOSFETs	1200	20	TO247-4
NWK203CJ1	SiC MOSFETs	1200	32	TO247-3	Contact us
NWK203CJ-4	SiC MOSFETs	1200	32	TO247-4	Contact us
NWK203CL1	SiC MOSFETs	1200	32	TOLL	Contact us
NWK204CJ1	SiC MOSFETs	1200	41	TO247-3
NWK207CJ1	SiC MOSFETs	1200	70	TO247-3	Contact us
NWK207CJ1-4	SiC MOSFETs	1200	70	TO247-4	Contact us
NWK208CJ1-4	SiC MOSFETs	1200	75	TO247-4	Contact us
NWK702CJ1-4	SiC MOSFETs	1700	24	TO247-4	Contact us
NWK775CW1-3	SiC MOSFETs	1700	750	TO220F-3	Contact us
NWK775CY1	SiC MOSFETs	1700	750	TO263	Contact us
NWK778CJ1	SiC MOSFETs	1700	780	TO247-3	Contact us

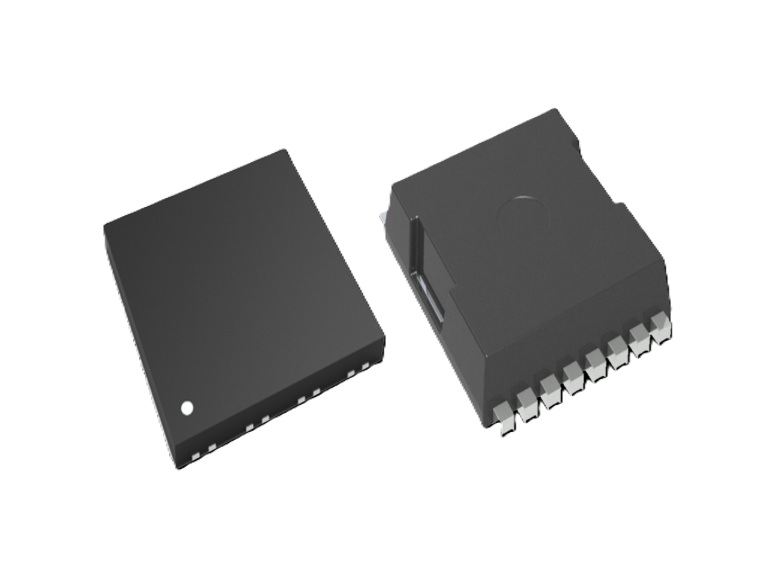

Part Number	Family	VDS (V)	RDS,ON (typ.) (mΩ)	Package	Datasheet
NW6503EBTL	GaN E-mode HEMTs	650	28	TOLL
NW6507EBD8	GaN E-mode HEMTs	650	153	DFN 8×8
